Label layouts > Label Designer

The design editor allows a user to quickly design a label with any properties which appear for the Product, including description, size, color, price, barcode & QR code, image and more.

Adding Fields to Label Layout

Add any property from the Edit Product screen to your label by placing the name of the property in curly brackets as a text element in the Label Designer.

Is your printed label missing properties? Search the product you are printing and check the fields to confirm that the product contains the field.

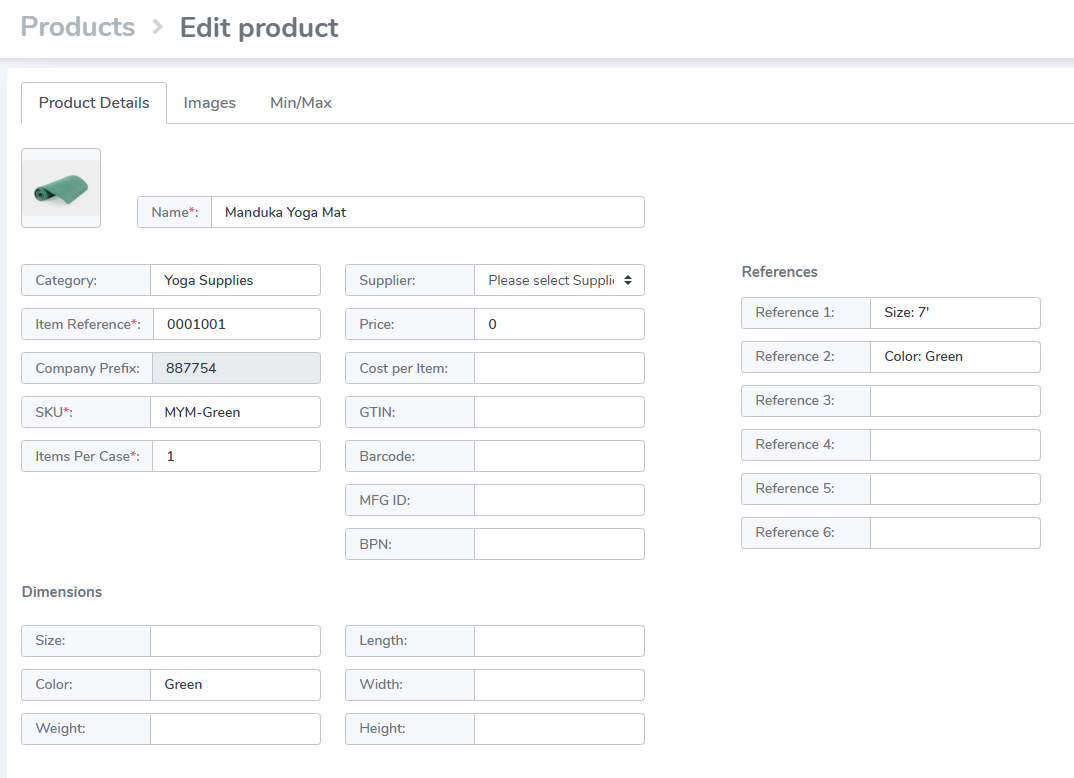

E.g. In the example below: to print "Size: 7'" on the label, you would add a text element with {Reference1}


Overview of Label Designer

Template

1. Choose label size - Don't see your label size available in the Size dropdown? Email support@simplerfid.com and notify us of the

2. Name Label

Add Block: Text, Barcode, Symbol, Shape & Image

3. Text - This is any place where text will appear such as name, description, size, color, style, price, etc. in any font desired

4. Barcode - This allows you to add a barcode or QR code

5. Symbol - add EPC global symbol other popular symbols

6. Shape - add basic shapes to design including line, box, circle

7. Image - upload a basic image

8. Delete Block - remove a single block from the canvas

9. Clear Layout - remove all blocks and clear the canvas

10. Grid settings - adjust grid lines

11. Align options

12. Editor window for selected block

13. Save button to save design. Once clicked the user is directed back to the Layouts page

14. Close button to close the design without saving. Once clicked the user is directed back to the Layouts page

Edit Block

Click on the Block you wish to edit

Text

Click Text

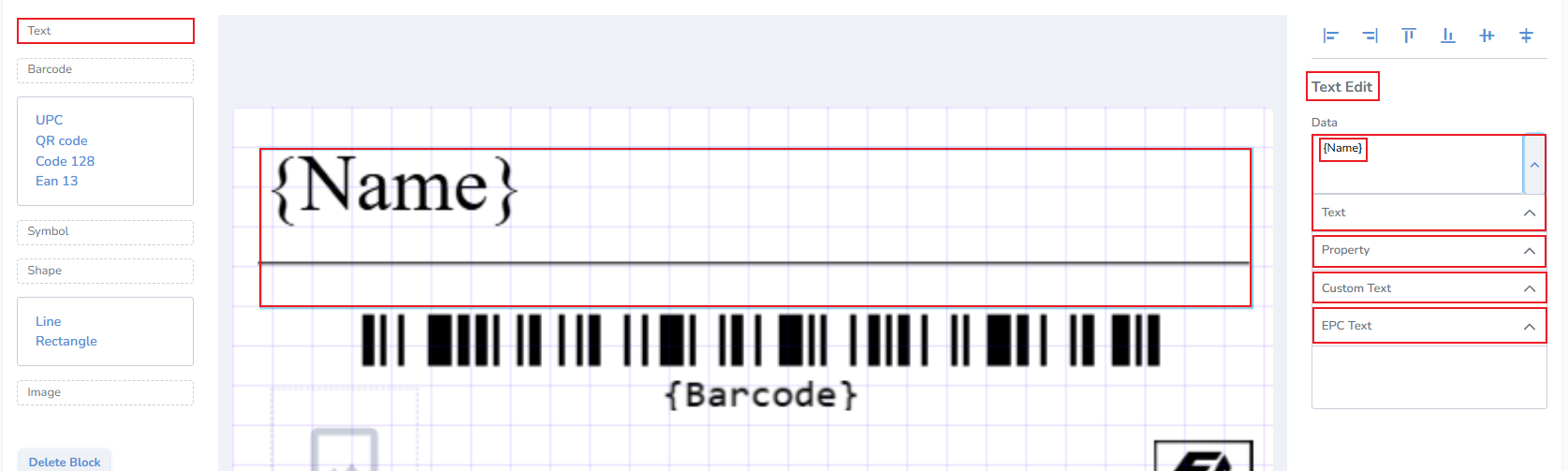

Choose the Data source: Text, Property, Custom Text & EPC Text from the right in the Text Edit section

  • Text: ID, Name, Category, MFG ID, SKU, Price, Item Number, Barcode, QR Code, BPN, & Items Per Tag
  • Font: Choose existing font or add any font
  • Property: Size, Color, Weight, Length, Width, Height, Full Description
  • Custom Text: Pulls information from Ref 1-Ref 6 in the Products > Edit Product view
  • EPC Text: tag level properties which include Items er tag, Cost, Cost per item, Born Date, Expiration Date, Lot Number, Sell by date, EPC, EPC ASCII, ISN, SN, or GTIN


Barcode

Click on the Barcode option on the right to view the Barcode Edit window

Choose Data source. This allows you to use any text or number from any field and turn it into a barcode or QR code

Symbol

Add a common symbol such as ISO, Trademark, Copyright, or EPC logo


Shape

Add common shape like a box, circle, or line
