What Needs to Be Plugged Into a Printronix Printer?

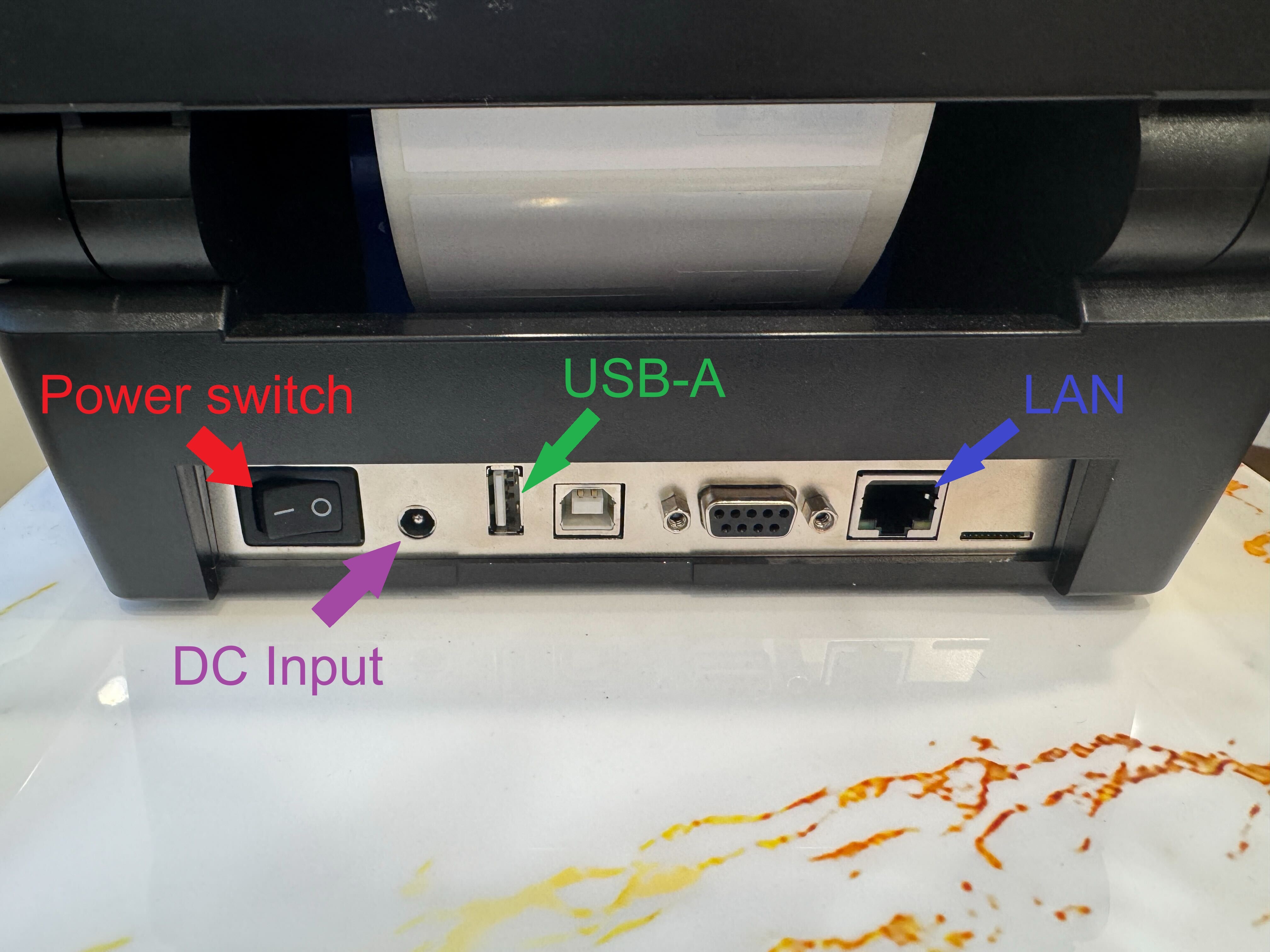

Pictures of the cables set up can be found at the bottom of this article
1. Power Connection (Required)
The first and most critical connection is the power supply.
- The T800 uses an AC power cord connected to a standard electrical outlet.
- The power cable plugs into the back of the printer.
- Once connected, the printer can be turned on using the power switch.
Without power, none of the other connections matter—the printer will not initialize or respond.
2. Media and Ribbon (Required for Printing)
Although not “cables,” these are essential physical components:
- Label roll (media) – the material the printer prints on
- Thermal ribbon (for thermal transfer models) – required for certain print types
These are loaded inside the printer. Without them, the printer may power on but cannot produce labels.
If you need help with loading media you can visit this article : https://kb.simplerfid.com/books/printer-set-up/draft/246
3. Data / Communication Cables (At Least One Required)
To send print jobs, the printer must be connected to a computer or network. The T800 supports several connection types:

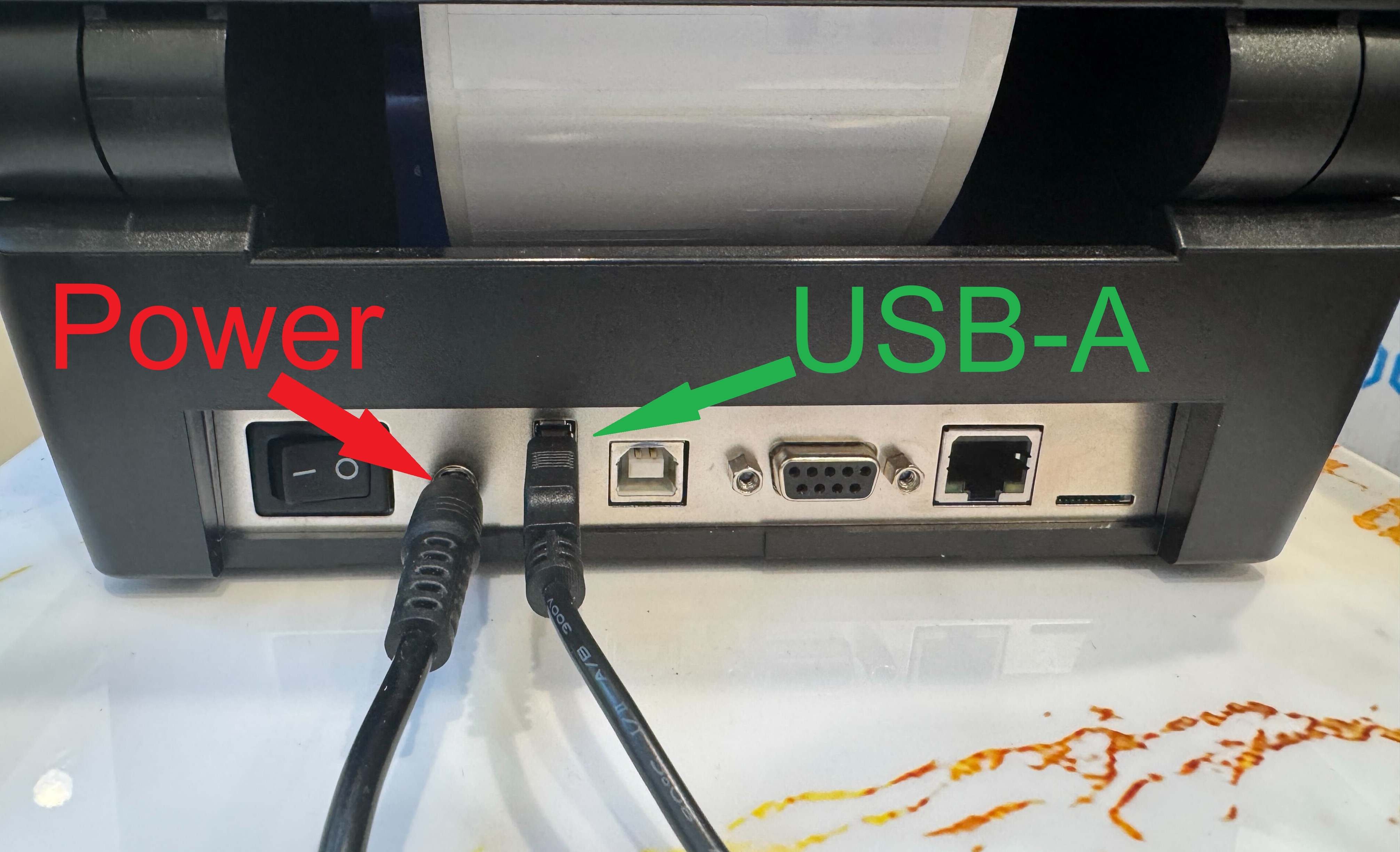

USB Connection (Most Common)
- Uses a USB Type-B cable (printer port) to a computer
- Plug one end into the printer and the other into a PC
- Ideal for direct, single-computer setups
The T800 includes USB as a standard interface

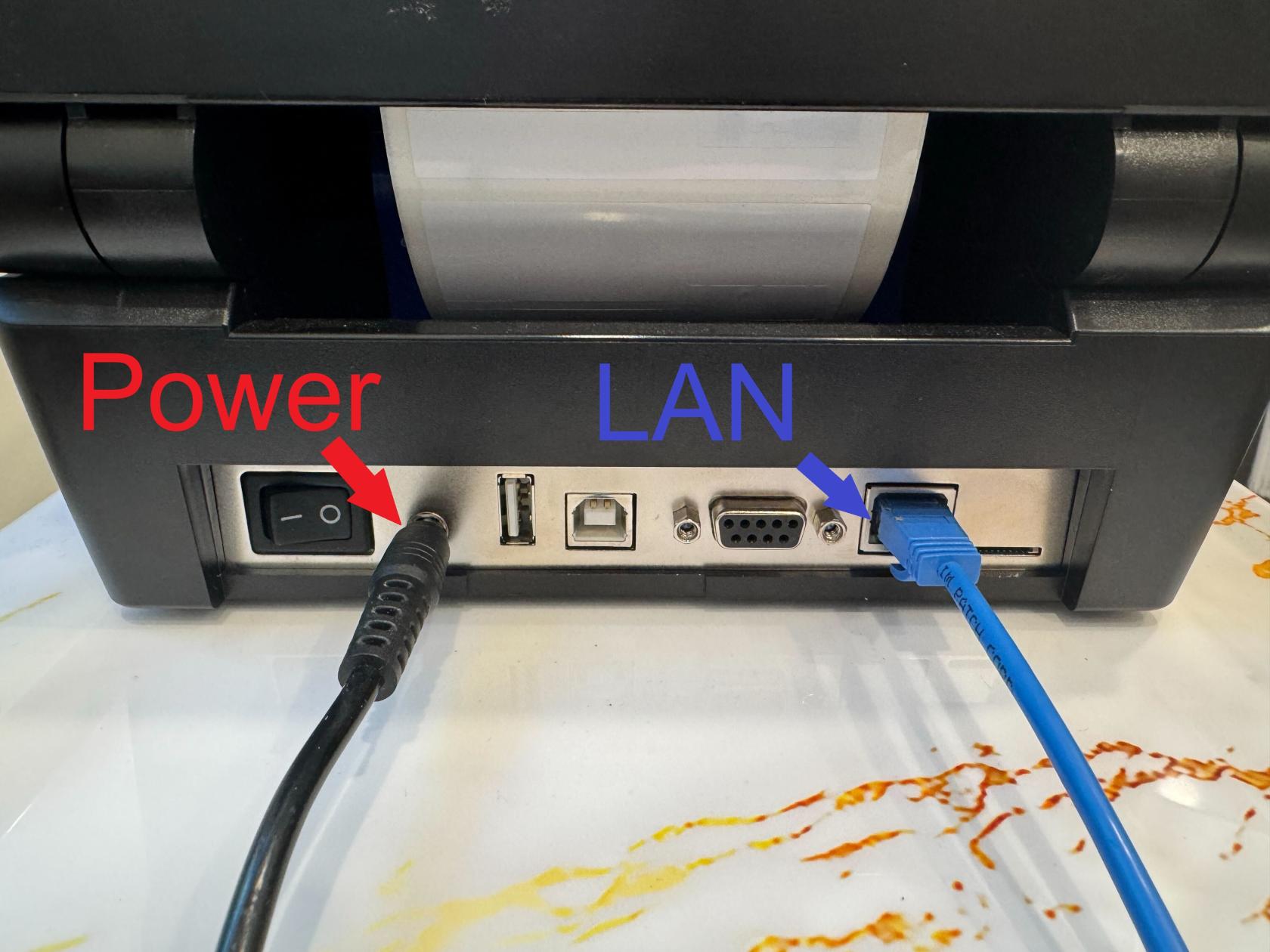

Ethernet (Network) Connection
- Uses an RJ-45 Ethernet cable
- Connects the printer to a router, switch, or network wall port
- Allows multiple users to access the printer over a network
This is one of the most widely used setups in warehouses and offices. The printer supports 10/100 Ethernet LAN connectivity
